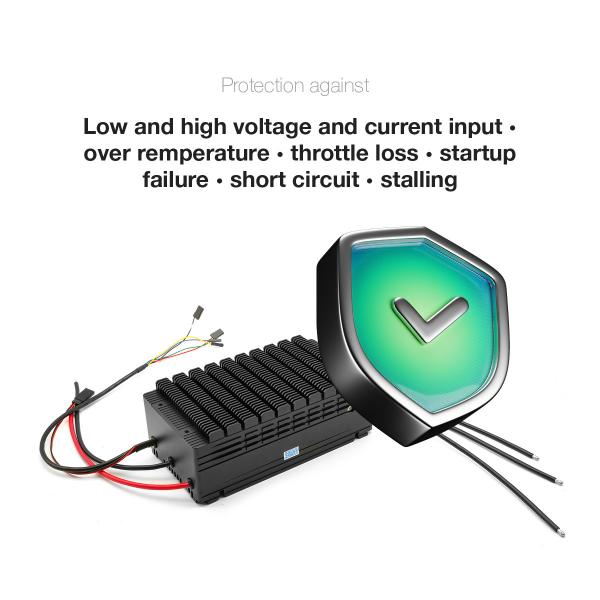

400V PWM Motor Speed Controller High Voltage With CAN Bus For Heavy Duty Drone Multi Rotor Drone

  • 1
  • 2
  • 3

Brand Name : Furious Motor

Model Number : 400 V 160 A

Certification : CE

Place of Origin : China

MOQ : 1

Price : $2898

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 3000 pcs per month

Delivery Time : 5-8 working days

Packaging Details : Carton witn protection (EPE)

Model : 96 S 160 A

Effective Throttle Range : 1050 us ~ 1940 us

BEC : 5 V 200 mA

Input Voltage : DC 200 V ~ 400 V

Continuous Current : 160 A

Ingress Protecton : IP X4

Suggested Li-po : 48 S ~ 96 S Lipo

Dimension : 232 mm * 121 mm * 68.8 mm

Weight : 1480 g

Frequency : 50 Hz ~ 500 Hz

Contact Now

Intoroduction

Achieve unparalleled control and dynamic performance with our 96S 160A ESC. Engineered for rapid acceleration, this unit transitions from idle to full speed in a mere 0.60 seconds. Featuring dual throttle inputs (CAN and PWM), with priority given to the precision of CAN digital control, it ensures seamless integration with advanced flight systems.

Synchronous regenerative braking enhances throttle response and efficiency. Comprehensive RPM and error signal outputs, coupled with CAN communication, provide real-time data for critical flight parameters.

Safety is paramount, with signal and power isolation integrated into the design, and flexible installation options allow for diverse mounting configurations. Optimized for seamless operation with 202150 and 240150 motors.

Tech Specs

Model 96 S 160 A
Effective Throttle Range 1050 us ~ 1940 us
BEC 5 V 200 mA
Input Voltage DC 200 V ~ 400 V
Continuous Current 160 A
Ingress Protecton IP X4
Suggested Li-po 48 S ~ 96 S
Dimension 179 mm * 99.6 mm * 66 mm
Weight 1480 g
Frequency 50 Hz ~ 500 Hz
Wire 8 AWG
Online Upgrade Yes
Throttle Loss Protection Yes
Error Signal Yes
Temperature Protection Yes
Voltage Protection Yes
Lock Protection Yes
RPM Output Yes
CAN Communication Yes
Working Temperature -20 °C ~ 65 °C
